Brand: Hengze
Certification: ISO9001 / CE / CB / ETL / CQC
| Package Type | : | Kraft paper cartons or corrugated cardboard boxes (custom) |
The file is encrypted. Please fill in the following information to continue accessing it

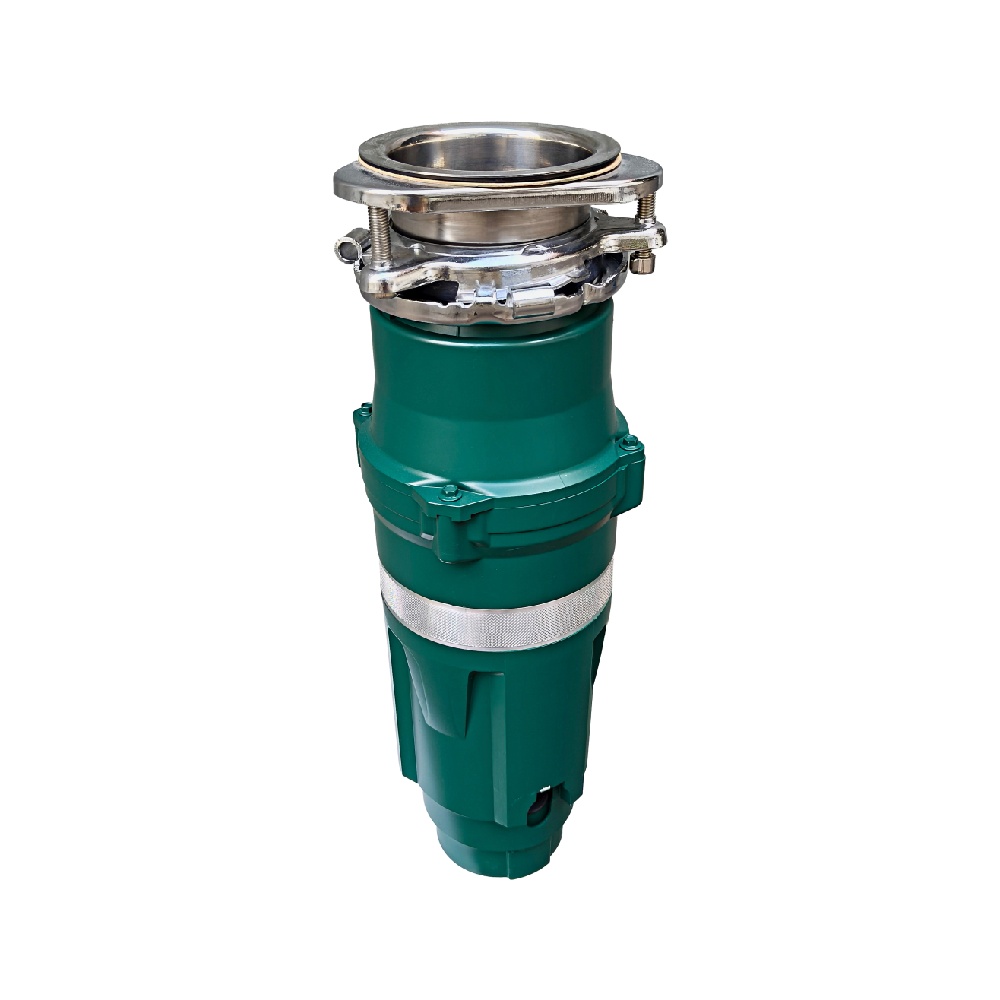

The Hengze FCD-1005 is a slim 1 HP Compact Garbage Disposal built for tight under-sink spaces. At just 150 mm wide and 5.7 kg, this Wireless Remote Garbage Disposal slips into narrow cabinets and retrofit kitchens where wider 200 mm units simply won't fit.
Unlike standard units that demand a countertop hole for an air switch, the FCD-1005 ships with wireless remote control as standard — no sink hole, no drilling. A 780 W DC motor spins at 3800 r/min into a 1300 ml two-stage grind chamber, with 5-minute auto shut-off and CE / CB / CQC certification for 220–240 V European, UK and Middle East markets.
Request Project Quotation| Model | FCD-1005 / FCD-1005E, black / grey |
| Feeding Method | Continuous feed |
| Motor Type | DC motor, sliding bearing |
| Rated Power | 780 W (1 HP) |
| Rated Voltage | 220–240 V ~ / 50 Hz |
| Motor Speed | 3800 r/min (high no-load speed) |
| Grind Capacity | 1300 ml |
| Grinding System | 2-stage grind, stainless steel material |
| Sound Pressure | 63 dB |
| Control System | Wireless remote control (standard), 5-minute auto power off |
| Manual Reset Protector | Yes — overheat + overload protection |
| Dual EMI Function | Yes |
| Sink Interface | Inner 90 mm / Outer 110 mm |
| Size / N.W. | 150 × 150 × 410 mm, 5.7 kg net |
| G.W. / Gift Box | 6.7 kg, 180 × 250 × 430 mm |
| Design Life | 10 years |
| Certifications | CE, CB, CQC |
| Narrow Cabinet Kitchens | 150 mm slim body fits under-sink spaces where wider 200 mm units cannot go. |
| Retrofit & Renovation | Wireless remote means no countertop drilling — ideal for finished kitchens. |
| Rental & Apartment Conversions | Light 5.7 kg body and simple install suit landlord and rental upgrade projects. |
| Cost-Sensitive OEM Programs | Value-built sliding-bearing platform for price-competitive private-label lines. |
| Retrofit Pack | Rental Upgrade Pack | Value OEM Pack |
| Slim body + remote for finished-kitchen retrofits. | Light install for apartments and rental upgrades. | Cost-effective platform for private-label brands. |
| Container | Bare Loading | Package |
| 20GP | 1300 pcs | 180×250×430 mm 6.7 kg gross |
| 40HQ | 3200 pcs |
Tell us your cabinet width and project type — we'll confirm fit, return CE/CB/CQC documents and lead time.
