Model No.: HZ-CSD-LB
Brand: Hengze
Service System: Return And Replacement
Warranty Service: 2 Years
Species: Dish Washer Parts
Appropriate Types: Hotel, Commercial
Kind Of Power: Electric
Place Of Origin: China
| Selling Units | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
Every dishroom has a different route between tableware collection and washing. Some need a simple straight conveyor; others have to turn around walls, worktables or sorting areas. The Hengze HZ-CSD-LB Commercial Dishwasher Conveyor Belt is built around that reality.

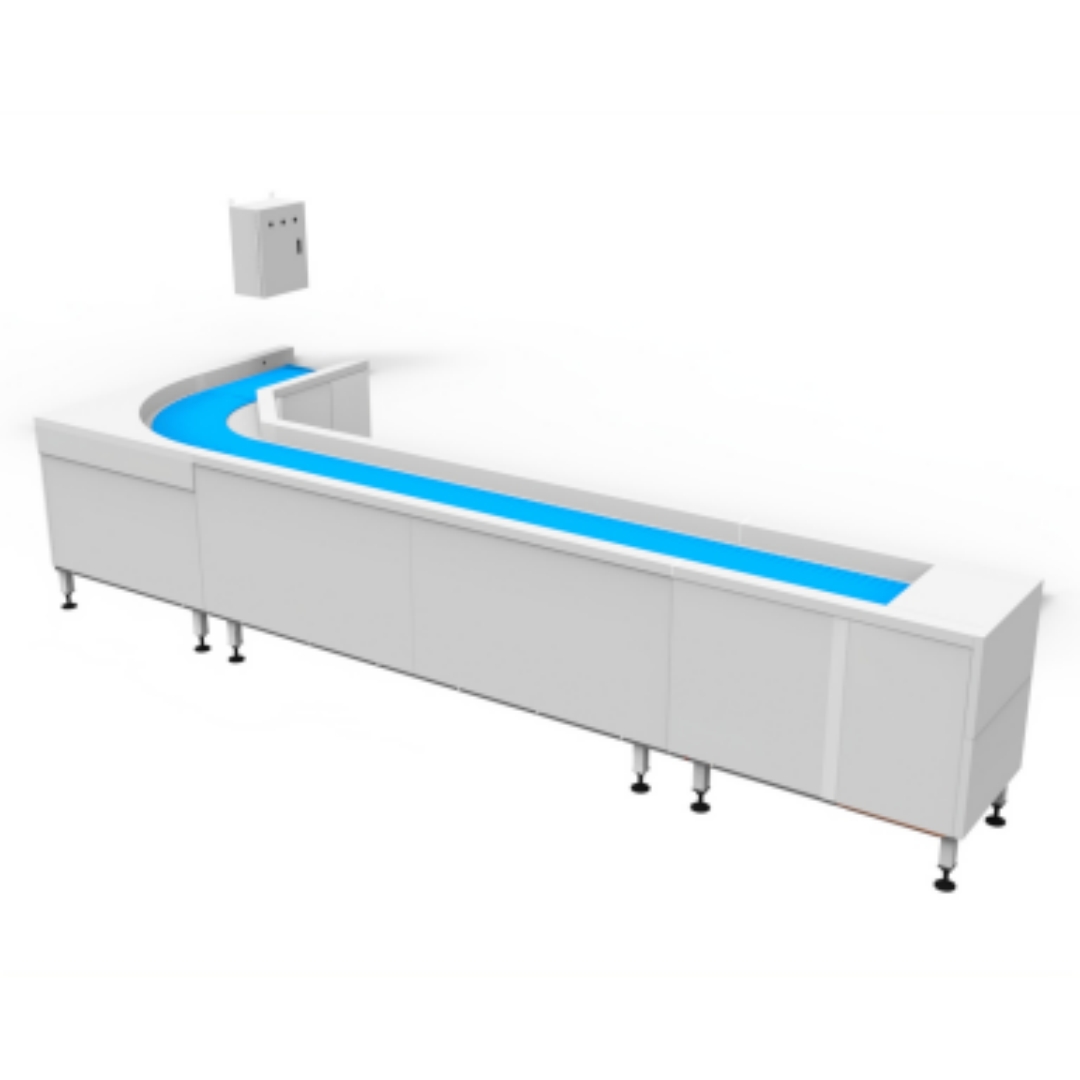

Instead of using one fixed layout, the system is assembled from modular sections. Infeed, straight conveyor, discharge and optional corner sections can be arranged according to the available space. Where the line needs to change direction, a 900 × 900 mm 90° corner can be incorporated into the design. An optional collection box is also available.
The Slat Conveyor Belt provides a practical surface for transporting plates, bowls, trays and other compatible tableware. Its conveying speed can be adjusted from 6 to 12 m/min, allowing operators to slow the line during quieter periods or increase the speed when tableware volume rises.
Cleaning access is built into the structure. The slats can be lifted for routine cleaning, while an automatic slat-cleaning function helps keep the belt surface cleaner during operation.
The conveyor uses a 0.4 kW geared motor, variable-frequency stepless speed control and soft-start operation. The main structure is made from 304 stainless steel, with emergency-stop, limit-switch, overload and short-circuit protection incorporated into the system.
For commercial kitchen contractors sourcing Commercial Dishwasher Parts, Hengze can customize the conveyor configuration around the actual dishroom instead of requiring customers to adapt their layout to a standard conveyor.
Model: HZ-CSD-LB
Type: Tableware Slat Conveyor Belt
Operating Height: 850 mm
Conveying Width: 300 mm
Speed: 6–12 m/min
Motor Power: 0.4 kW
Material: 304 Stainless Steel
The conveyor layout can be planned according to the actual collection point, washing area and available floor space.
Rather than limiting the project to one straight conveyor, different modules can be combined:
Infeed → Straight Section → Optional Corner → Discharge → Optional Collection Box
A 900 × 900 mm corner module allows the conveyor to make a 90-degree turn, giving kitchen designers more freedom when working around walls, columns or other equipment.
The Dishwasher Conveyor Belt operates at an adjustable speed of 6–12 m/min, making it possible to match tableware flow to the workload of the dishroom.
Operators can change conveyor speed using an external speed controller, keeping daily adjustment simple and accessible.
The slat sections can be lifted to provide better access underneath the conveying surface during routine cleaning.
A built-in cleaning function helps clean the conveying surface while the slat conveyor belt is running, reducing residue accumulation during operation.
Variable-frequency control provides soft starting rather than immediately driving the conveyor at full operating speed.
The main conveyor structure uses 304 stainless steel, making it suitable for the working conditions found in commercial dishwashing areas.
The conveyor is equipped with emergency-stop and limit switches, together with overload and short-circuit protection.
The open conveying surface allows operators to place different compatible plates, bowls, trays and other tableware directly onto the conveyor without a fixed rack-loading pattern.
| Item | Specification |
|---|---|
| Model | HZ-CSD-LB |
| Product Type | Tableware Slat Conveyor Belt |
| Operating Height | 850 mm |
| Overall Width | 535 mm, excluding collection box |
| Conveyor Inner Width | 300 mm |
| Maximum Plate Length | 450 mm |
| Maximum Tableware Width | ≤390 mm |
| Conveyor Speed | 6–12 m/min |
| Motor Power | 0.4 kW |
| Speed Control | Variable-Frequency Stepless Control |
| Main Material | 304 Stainless Steel |
| Protection Devices | Emergency Stop Switch, Limit Switch |
| Sections | Infeed, Straight Section, Optional Corner, Discharge, Optional Collection Box |
| 90° Corner Size | 900 × 900 mm |
| Application | Commercial Tableware Transport |
The HZ-CSD-LB Commercial Dishwasher conveyor belt is intended for dishrooms where used tableware needs to move continuously from the collection area toward the washing section.
It is well suited to hotels, restaurants, school canteens, university dining halls, factory cafeterias, employee canteens and other foodservice facilities with regular tableware return traffic.
The system is particularly useful for kitchens where the collection point cannot be positioned directly beside the dishwasher. Straight and corner sections can be arranged to create a practical route through the available space.
For new commercial kitchen projects, the conveyor can be planned together with the washing and sorting area. For existing kitchens, individual conveyor sections can also be discussed when modifying or extending the tableware transport route.
A customized conveyor quotation starts with the site rather than just the model number.
Customers can send Hengze a floor plan or simple layout drawing showing the tableware collection point, dishwasher position, required conveyor route and available dimensions. Information about tableware size and expected workload is also helpful.
Based on these details, Hengze can assist with selecting the required straight sections, 90° corner modules, infeed, discharge and optional collection box.
For complete dishroom projects, the dishwasher conveyor belt can also be coordinated with Hengze commercial dishwashers and other compatible commercial Dishwasher Parts and supporting equipment.
Installation guidance, operating instructions and maintenance support are available for project customers. OEM and customized configurations can also be discussed according to project requirements.
The HZ-CSD-LB is a configurable conveyor system, so final packing depends on the overall length, number of straight sections, corner modules and optional components.
Long conveyor lines can be divided into separate modules for transportation and assembled during installation. Main stainless steel sections, drive components and related parts are protected for handling and international shipment.
Before packing, the final conveyor configuration should be confirmed against the approved layout.
For larger commercial kitchen projects, the conveyor can also be shipped together with Hengze dishwashers and related commercial dishwasher parts to simplify project loading and delivery arrangements.
Export packing and container loading can be arranged according to the final dimensions, order quantity and destination.
A commercial dishwasher conveyor belt transports used tableware between the collection area and the dishwashing section, helping organize tableware movement in larger commercial kitchens.
Yes. The HZ-CSD-LB uses a slat conveyor belt design for transporting compatible plates, bowls, trays and other foodservice tableware.
Yes. The modular design allows the conveyor length and layout to be configured according to the customer's available space and required transport route.
Yes. An optional 90° corner module can be combined with straight sections to create an L-shaped layout.
The specified 90° corner size is 900 × 900 mm.
The operating height is 850 mm.
